ADVENTURE GEAR
    • Awning Mount Mini Tubular Clamp Mount for Round Roof Racks
    Awning Mount Tubular Clamps Mini - GZila Designs

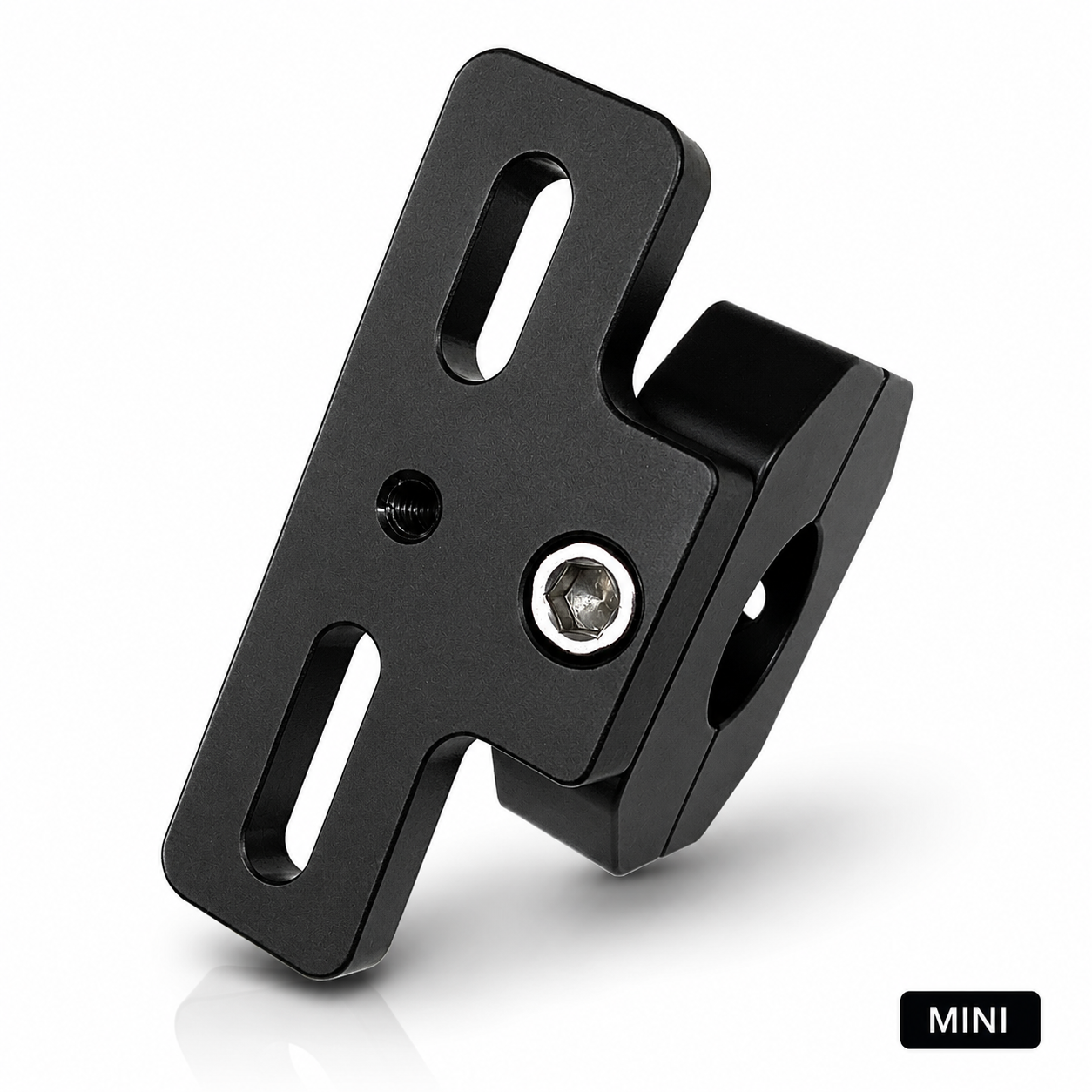

    Awning Mount Mini Tubular Clamp Mount for Round Roof Racks
    Awning Mount Tubular Clamps Mini - GZila Designs

    AWNING MOUNT

    Tubular Clamp Mount
    🚚 Ships Same or Next Business Day
    $99.00 - $139.00
    Diameter
    Pack Size

    Built for Compact 90° Awning Setups

    These mini tubular clamps are designed for standard 90° straight awnings and where height clearance is limited. The shorter vertical profile works well for tighter installs, rooftop tent setups, or racks with multiple horizontal tubes.

    Lower Profile Design

    A compact height option for installs where space above the rack is limited.

    Compact Profile
    Designed for installations where minimizing overall mounting height is important.
    Wide Diameter Range

    Available in multiple diameter options to fit a variety of round tubular roof racks.

    Compatibility

    Designed For Check Before Ordering
    • Round tubular roof rack systems
    • Standard straight 90° awnings
    • Lower-profile awning installs
    • Racks with multiple horizontal mounting tubes
    • Larger 180° or 270° awnings
    • Setups needing additional mounting height
    • Non-round tubing
    • Any setup where the awning may contact the tent or rack

    What’s Included

    2 or 3 Mini Clamps
    Based on selected option
    Stainless Hardware
    Included with each set
    Made in USA
    Machined in-house from black anodized aluminum

    Before Ordering

    1. Measure your rack tubing
    Use calipers or our printable measurement tool to confirm your tube diameter before selecting a size.
    2. Select the matching diameter
    Choose the clamp size that matches your actual roof rack tubing. A slightly oversized reading is normal on powder coated racks, so a 1.75" clamp may be correct even if your rack measures slightly over 1.75".

    Common reference sizes: 4Runner TRD Pro 2019–2024, FJ Cruiser 2007-2014, and Sequoia TRD Pro 2020–2022 roof racks typically use 1.75" tubing. GOBI Toyota roof racks typically use 1.00" tubing.
    3. Check awning and tent clearance
    These clamps may not fit or clear every rooftop tent, overhanging crossbar, or tight rack setup.
    4. Use the measurement PDF
    Print the measurement tool PDF to help confirm your tubing size before placing your order.

    Installation

    1. Position the clamps
    Space the clamps evenly along your roof rack based on your awning’s mounting points.
    2. Tighten the clamps evenly
    Using a 1/4" Allen wrench, gradually tighten each bolt a little at a time. Alternate between bolts instead of fully tightening one side first so the clamp seats evenly around the tubing. Visible thread should remain when properly installed.
    3. Attach your awning
    Use your awning’s existing hardware to bolt the awning through the vertical mounting slot.

    Installation is simple with basic hand tools. Periodically check and tighten hardware after off-road use or long trips.

    Customer Reviews

    Trusted by Thousands of Customers

    Over 10+ years, GZila customers have trusted our products for quality, reliability, and real-world use.

    Description

    Built for Compact 90° Awning Setups

    These mini tubular clamps are designed for standard 90° straight awnings and where height clearance is limited. The shorter vertical profile works well for tighter installs, rooftop tent setups, or racks with multiple horizontal tubes.

    Lower Profile Design

    A compact height option for installs where space above the rack is limited.

     Compact Profile
    Designed for installations where minimizing overall mounting height is important.
     Wide Diameter Range

    Available in multiple diameter options to fit a variety of round tubular roof racks.

    Compatibility

    Designed For Check Before Ordering
    • Round tubular roof rack systems
    • Standard straight 90° awnings
    • Lower-profile awning installs
    • Racks with multiple horizontal mounting tubes
    • Larger 180° or 270° awnings
    • Setups needing additional mounting height
    • Non-round tubing
    • Any setup where the awning may contact the tent or rack

    What’s Included

    2 or 3 Mini Clamps
    Based on selected option     Stainless Hardware
    Included with each set     Made in USA
    Machined in-house from black anodized aluminum

    Before Ordering

    1. Measure your rack tubing
    Use calipers or our printable measurement tool to confirm your tube diameter before selecting a size.     2. Select the matching diameter
    Choose the clamp size that matches your actual roof rack tubing. A slightly oversized reading is normal on powder coated racks, so a 1.75" clamp may be correct even if your rack measures slightly over 1.75".

    Common reference sizes: 4Runner TRD Pro 2019–2024, FJ Cruiser 2007-2014, and Sequoia TRD Pro 2020–2022 roof racks typically use 1.75" tubing. GOBI Toyota roof racks typically use 1.00" tubing.     3. Check awning and tent clearance
    These clamps may not fit or clear every rooftop tent, overhanging crossbar, or tight rack setup.     4. Use the measurement PDF
    Print the measurement tool PDF to help confirm your tubing size before placing your order.

    Installation

    1. Position the clamps
    Space the clamps evenly along your roof rack based on your awning’s mounting points.     2. Tighten the clamps evenly
    Using a 1/4" Allen wrench, gradually tighten each bolt a little at a time. Alternate between bolts instead of fully tightening one side first so the clamp seats evenly around the tubing. Visible thread should remain when properly installed.     3. Attach your awning
    Use your awning’s existing hardware to bolt the awning through the vertical mounting slot.

    Installation is simple with basic hand tools. Periodically check and tighten hardware after off-road use or long trips.
