ADVENTURE GEAR
    • Awning Mount XL Tubular Clamp Mount for 180 and 270 Degree Awnings
    Awning Mount Tubular Clamps XL - GZila Designs

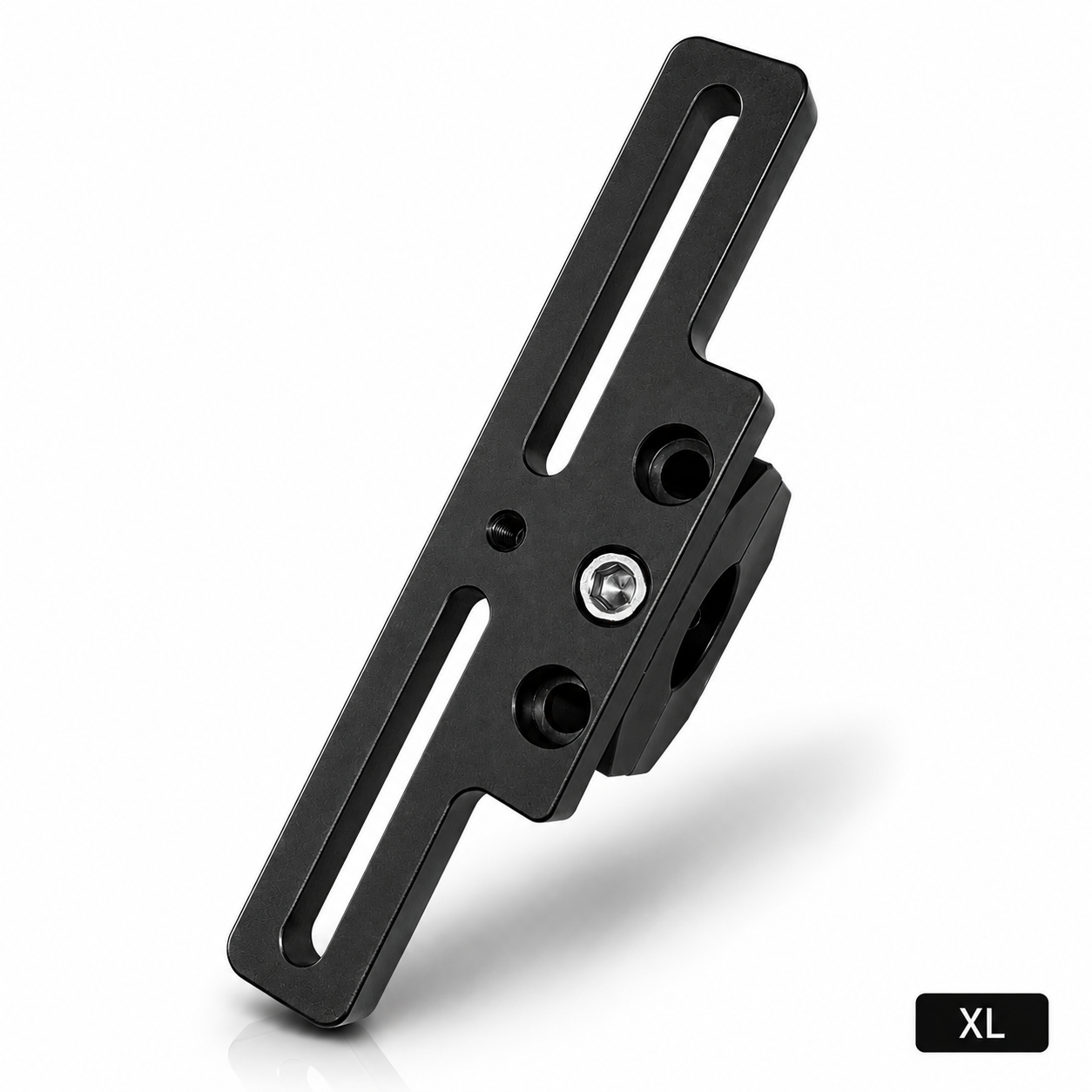

    Awning Mount XL Tubular Clamp Mount for 180 and 270 Degree Awnings
    Awning Mount Tubular Clamps XL - GZila Designs

    AWNING MOUNT

    Tubular Clamp Mount
    ⚠️ Pre-Order • Ships Late June
    $139.00 - $185.00
    Diameter
    Pack Size

    Built for Larger 180° and 270° Awnings

    These XL tubular clamps are designed for larger awning setups that need more support than a standard mount. The thicker aluminum body and extended mounting slots give you a stronger, cleaner way to mount heavy awnings to round roof rack tubing.

    Thicker Design

    Built thicker throughout to better support larger awning setups.

    Adjustable Height

    Extended mounting slots allow you to fine-tune awning height and positioning.

    Wide Diameter Range

    Available in multiple diameter options to fit a variety of round tubular roof racks.

    Compatibility

    Designed For Check Before Ordering
    • Round tubular roof rack systems
    • Larger 180° awnings
    • Larger 270° awnings
    • Setups needing additional height adjustment
    • Rooftop tents with limited side clearance
    • Overhanging crossbars
    • Non-round tubing
    • Any setup where the awning may contact the tent or rack

    What’s Included

    3 or 4 XL Clamps
    Based on selected option
    Stainless Hardware
    Included with each set
    Made in USA
    Machined in-house from black anodized aluminum

    Before Ordering

    1. Measure your rack tubing
    Use calipers or our printable measurement tool to confirm your tube diameter before selecting a size.
    2. Select the matching diameter
    Choose the clamp size that matches your actual roof rack tubing. A slightly oversized reading is normal on powder coated racks, so a 1.75" clamp may be correct even if your rack measures slightly over 1.75".

    Common reference sizes: 4Runner TRD Pro 2019–2024, FJ Cruiser 2007-2014, and Sequoia TRD Pro 2020–2022 roof racks typically use 1.75" tubing. GOBI Toyota roof racks typically use 1.00" tubing.
    3. Check awning and tent clearance
    These clamps may not fit or clear every rooftop tent, overhanging crossbar, or tight rack setup.
    4. Use the measurement PDF
    Print the measurement tool PDF to help confirm your tubing size before placing your order.

    Installation

    1. Position the clamps
    Space the clamps evenly along your roof rack based on your awning’s mounting points.
    2. Tighten the clamps evenly
    Using a 1/4" Allen wrench, gradually tighten each bolt a little at a time. Alternate between bolts instead of fully tightening one side first so the clamp seats evenly around the tubing. Visible thread should remain when properly installed.
    3. Attach your awning
    Use your awning’s existing hardware to bolt the awning through the vertical mounting slots. Adjust the awning position as needed before fully tightening the hardware.

    Installation is simple with basic hand tools. Periodically check and tighten hardware after off-road use or long trips.

    Customer Reviews

    Trusted by Thousands of Customers

    Over 10+ years, GZila customers have trusted our products for quality, reliability, and real-world use.

    Description

    Built for Larger 180° and 270° Awnings

    These XL tubular clamps are designed for larger awning setups that need more support than a standard mount. The thicker aluminum body and extended mounting slots give you a stronger, cleaner way to mount heavy awnings to round roof rack tubing.

    Thicker Design

    Built thicker throughout to better support larger awning setups.

     Adjustable Height

    Extended mounting slots allow you to fine-tune awning height and positioning.

     Wide Diameter Range

    Available in multiple diameter options to fit a variety of round tubular roof racks.

    Compatibility

    Designed For Check Before Ordering
    • Round tubular roof rack systems
    • Larger 180° awnings
    • Larger 270° awnings
    • Setups needing additional height adjustment
    • Rooftop tents with limited side clearance
    • Overhanging crossbars
    • Non-round tubing
    • Any setup where the awning may contact the tent or rack

    What’s Included

    3 or 4 XL Clamps
    Based on selected option     Stainless Hardware
    Included with each set     Made in USA
    Machined in-house from black anodized aluminum

    Before Ordering

    1. Measure your rack tubing
    Use calipers or our printable measurement tool to confirm your tube diameter before selecting a size.     2. Select the matching diameter
    Choose the clamp size that matches your actual roof rack tubing. A slightly oversized reading is normal on powder coated racks, so a 1.75" clamp may be correct even if your rack measures slightly over 1.75".

    Common reference sizes: 4Runner TRD Pro 2019–2024, FJ Cruiser 2007-2014, and Sequoia TRD Pro 2020–2022 roof racks typically use 1.75" tubing. GOBI Toyota roof racks typically use 1.00" tubing.     3. Check awning and tent clearance
    These clamps may not fit or clear every rooftop tent, overhanging crossbar, or tight rack setup.     4. Use the measurement PDF
    Print the measurement tool PDF to help confirm your tubing size before placing your order.

    Installation

    1. Position the clamps
    Space the clamps evenly along your roof rack based on your awning’s mounting points.     2. Tighten the clamps evenly
    Using a 1/4" Allen wrench, gradually tighten each bolt a little at a time. Alternate between bolts instead of fully tightening one side first so the clamp seats evenly around the tubing. Visible thread should remain when properly installed.     3. Attach your awning
    Use your awning’s existing hardware to bolt the awning through the vertical mounting slots. Adjust the awning position as needed before fully tightening the hardware.

    Installation is simple with basic hand tools. Periodically check and tighten hardware after off-road use or long trips.
